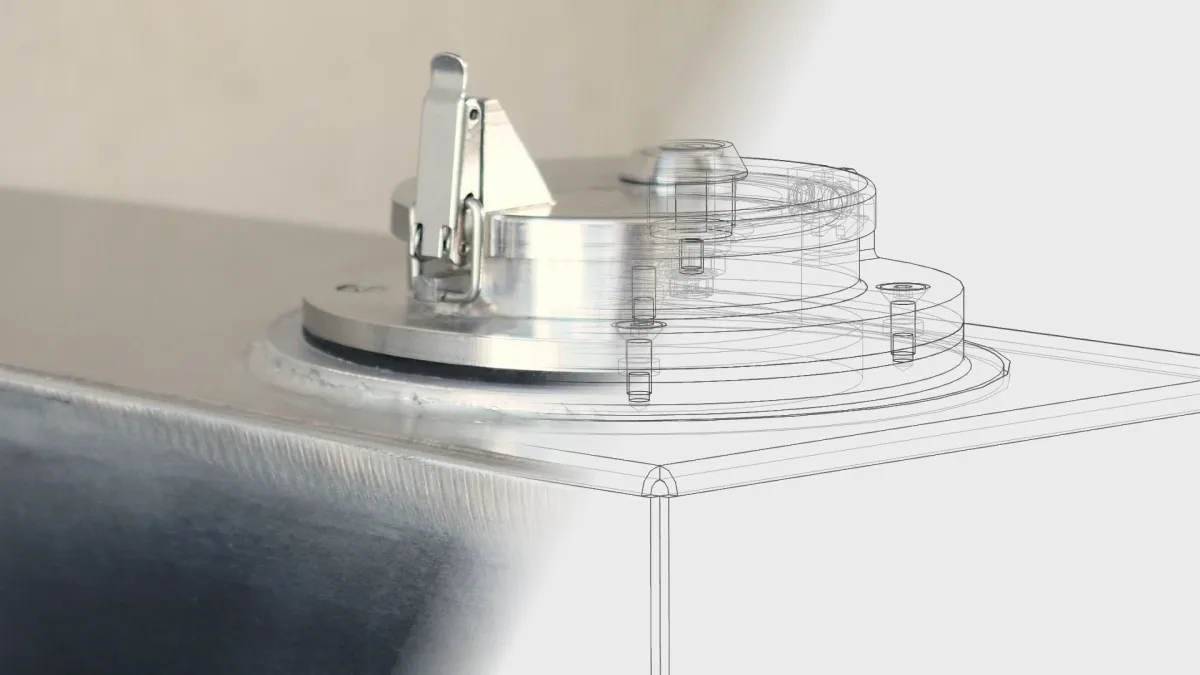

40L Water Tank — CAD & Drawings
Why this exists
We build our tanks in stainless steel because we value our health and we love to build and develop our own equipment. That way we ensure our equipment perfectly fits our needs. As we pointed out in this article, stainless steel has its drawbacks and at some points, plastics are clearly superior and cheaper. On the other hand, health and repairability and longevity are more important!

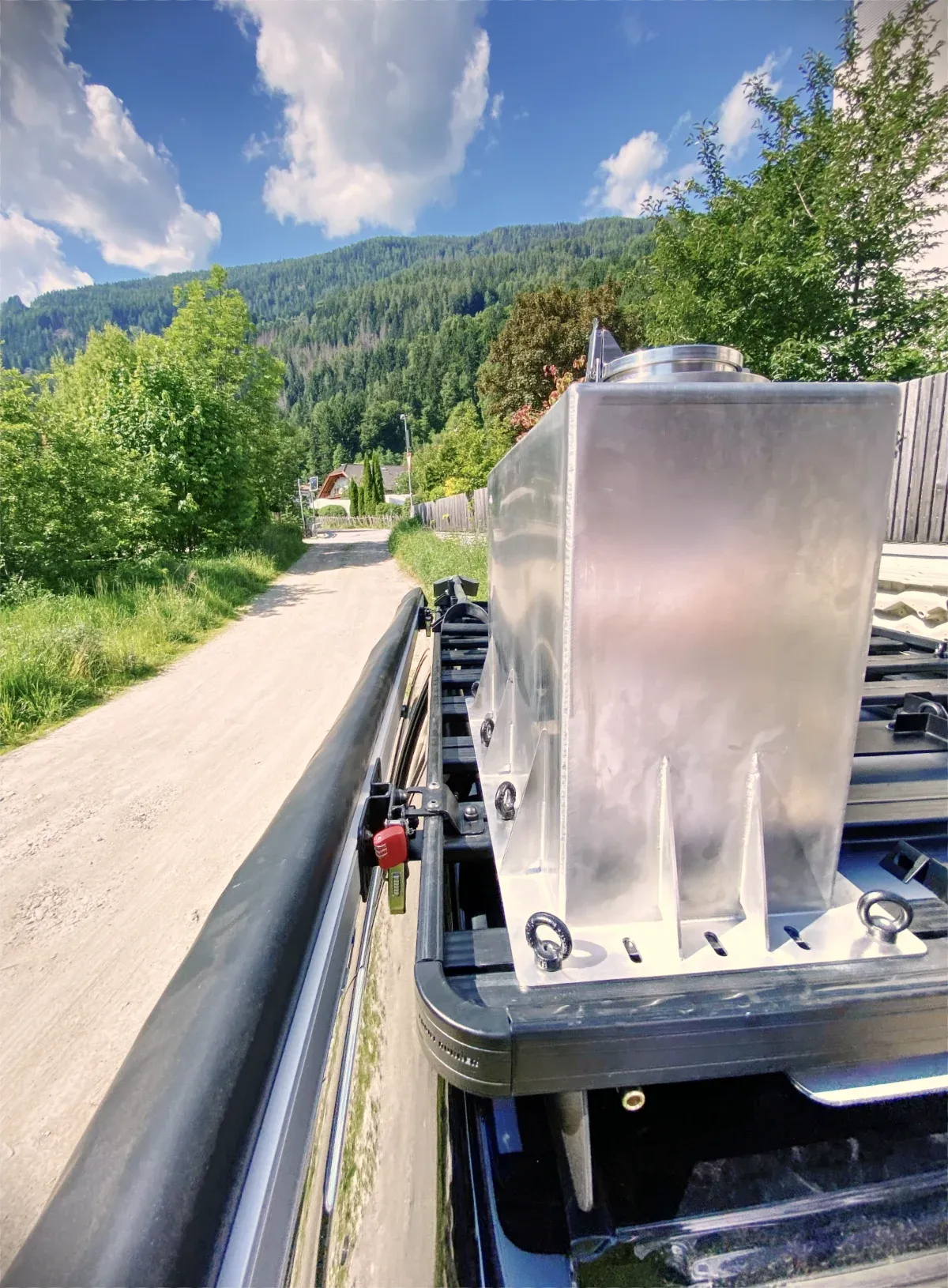

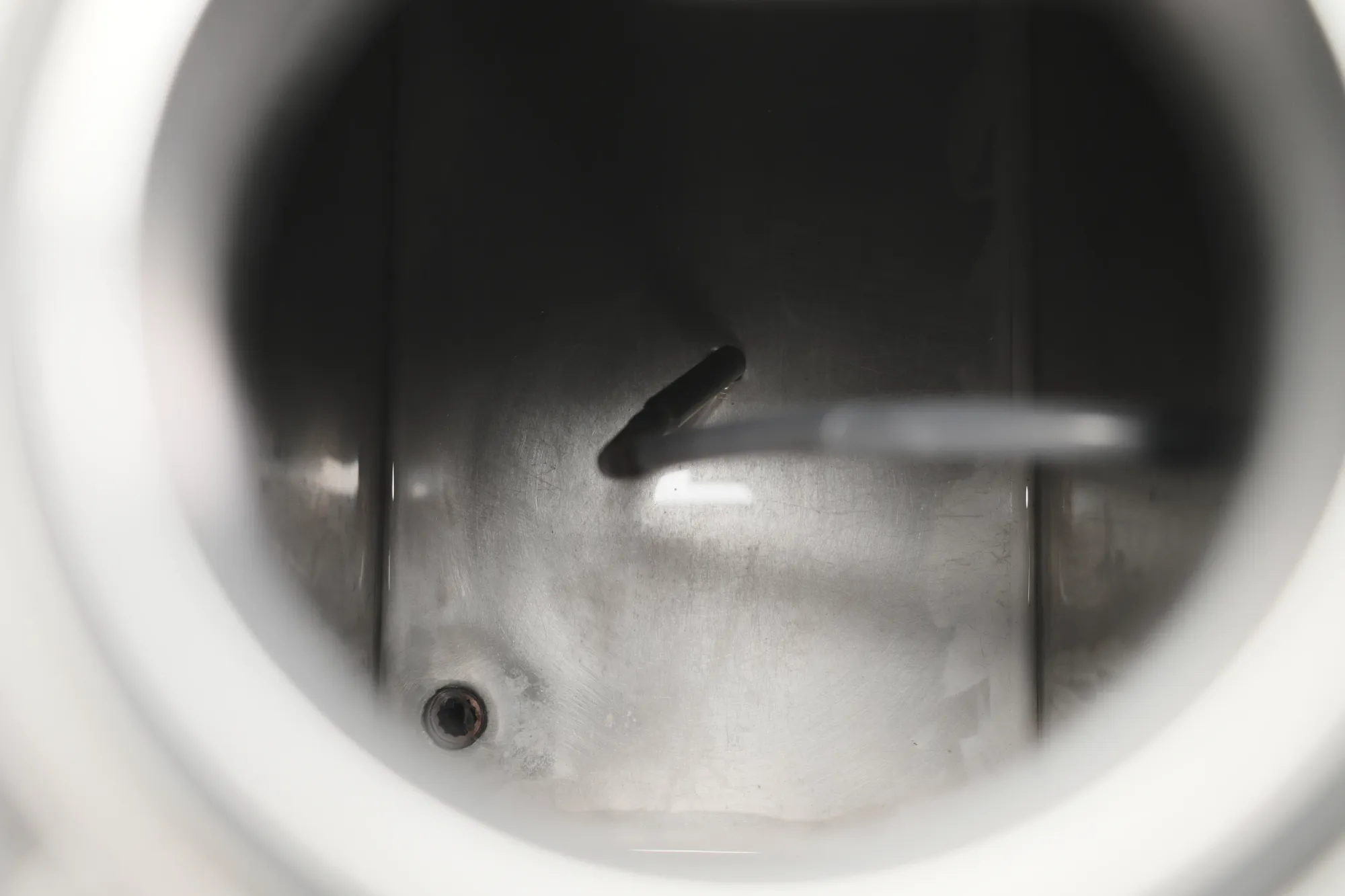

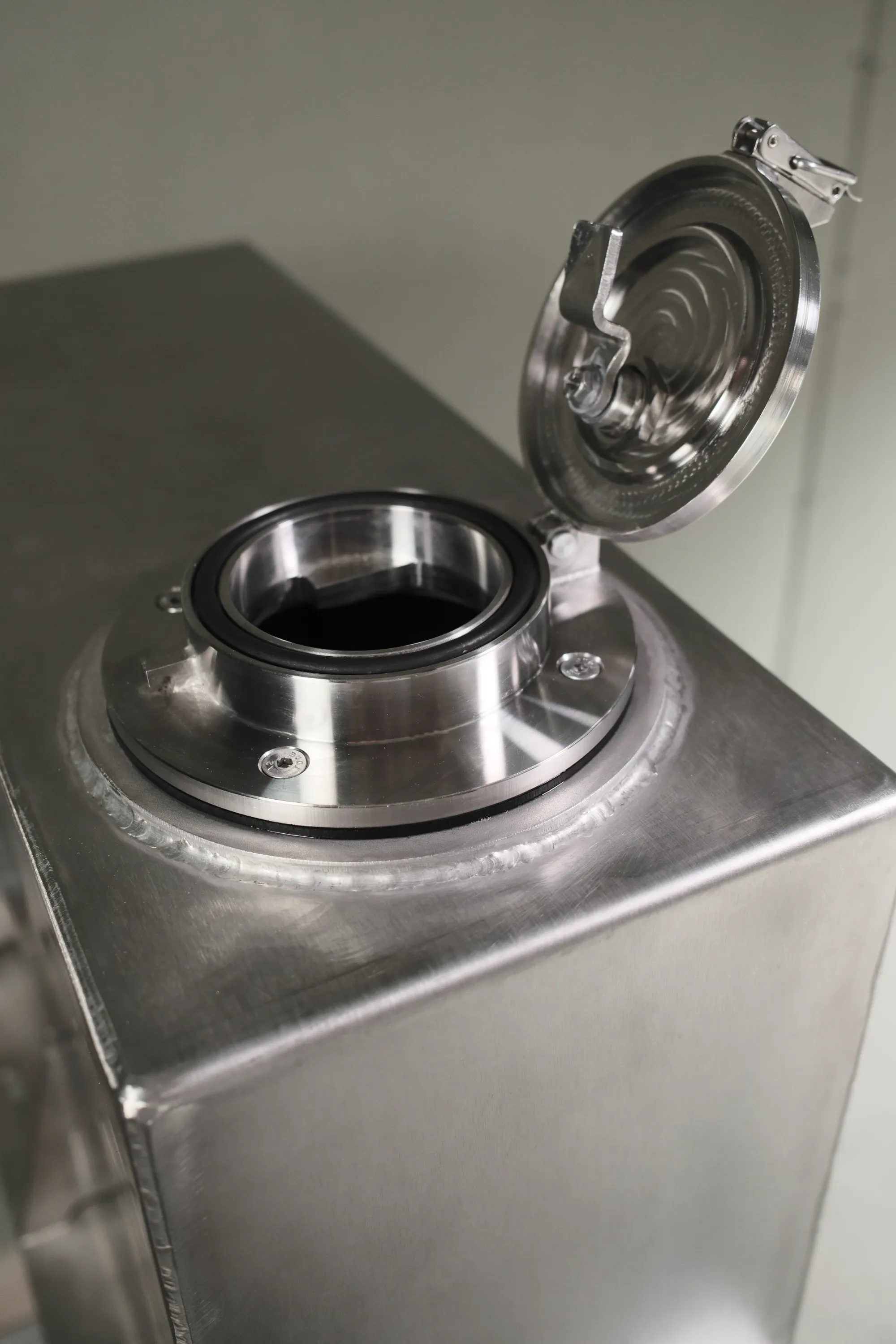

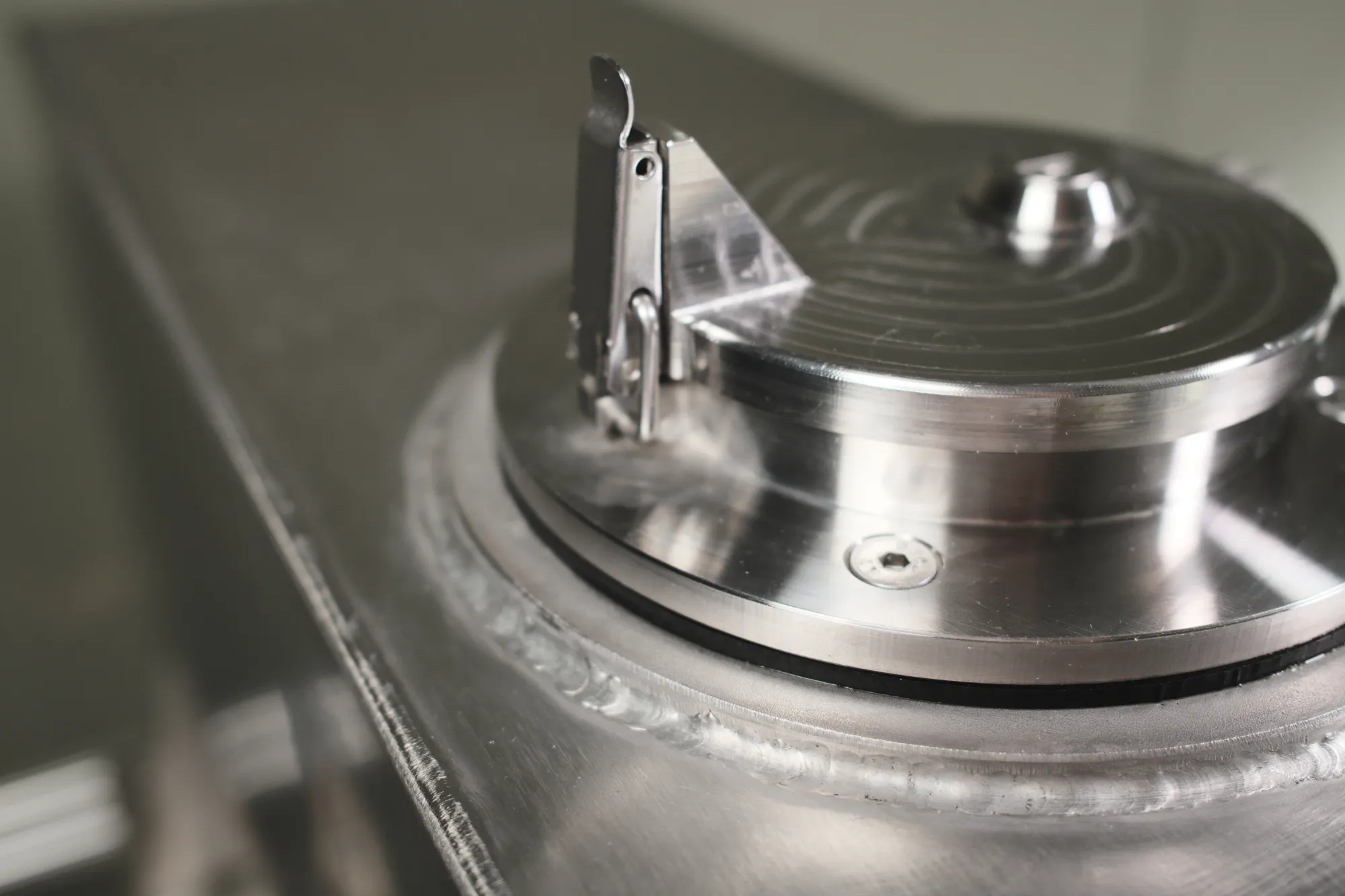

I sat down and started the CAD PC and began sketching a model for a 40 Liter stainless steel tank. I designed the tank and the custom inlet nozzle to fit my hand through to access the inner for proper cleaning. Designed to mount it on our Front Runner roof rack.
What you get
- Native Solid Edge files — fully editable part and assembly files (.par / .asm / .dft)
- STEP file of the assembly — open in Fusion, SolidWorks, FreeCAD, Inventor or any modern CAD system

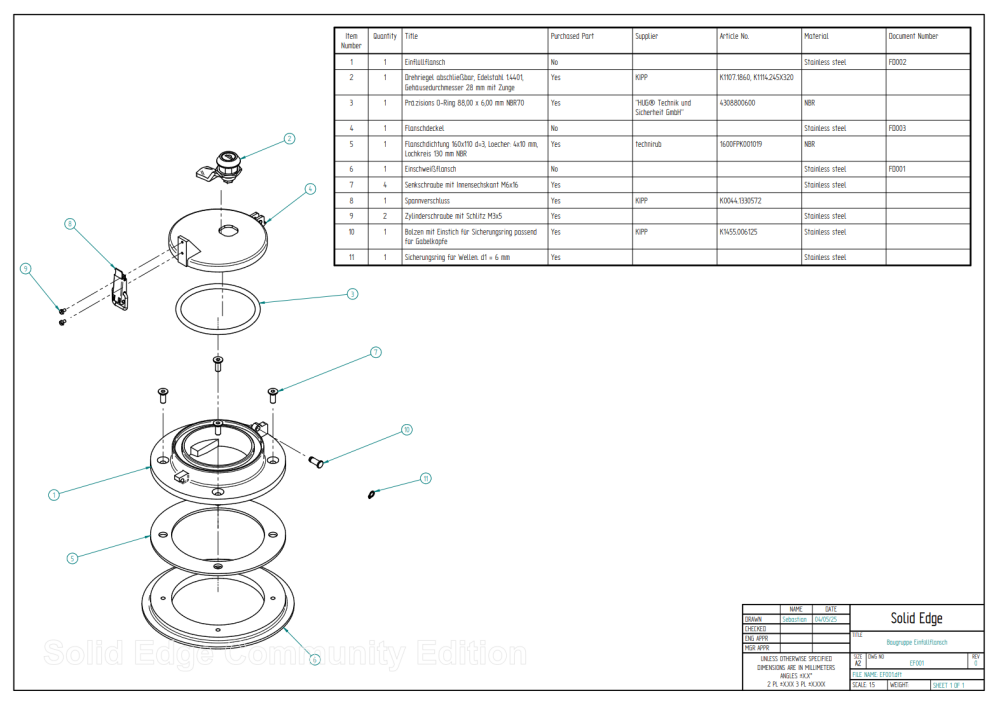

- Technical drawings as PDF — fully dimensioned, ready to print for the workshop
- DXF files — ready for laser cutting or waterjet, no rework needed

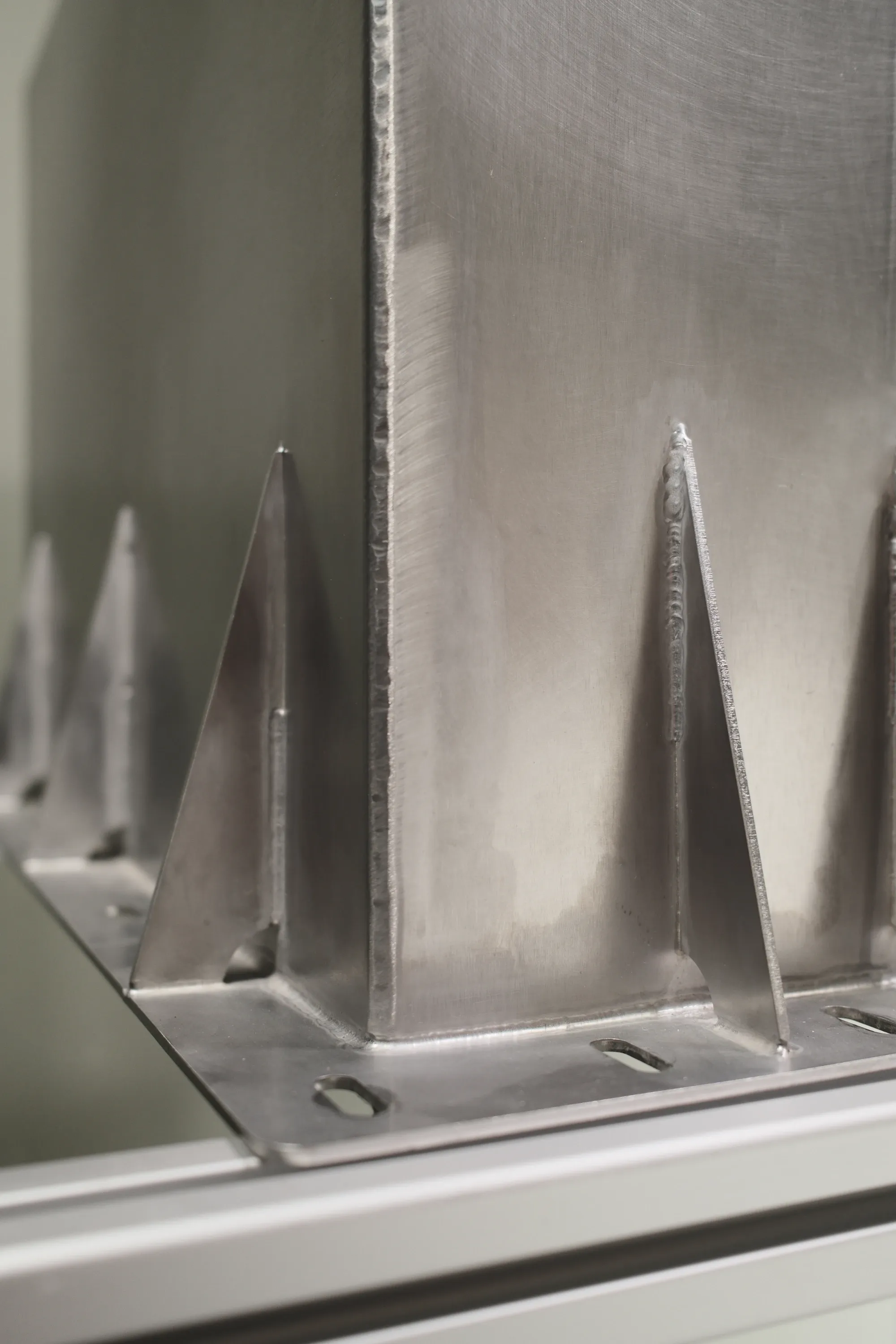

- Weld seam specifications — seam types and placement documented for fabrication
Delivered as a single ZIP. Instant download after purchase.
No physical product — digital download only.
€89 incl. VAT — local taxes are included.
What happens next: after purchase you'll receive the download link by email.
Payment is processed by Paddle.com as Merchant of Record. Paddle is the seller of record for this transaction; their terms and refund policy apply.
Who wrote it
I'm Sebastian — mechanical engineer (Dr.-Ing.), and I built this system because I couldn't buy one that told me honestly what it removed. It's been designed, built, and field-tested on our own vehicle, not specified from a catalogue.
The reasoning behind every stage is documented in the guide, and discussed in depth on our blog WeissExplorers.com
Who this is for
Builders who want to have this tank fabricated by a sheet metal shop, or adapt the design to their own vehicle. You'll need a CAD program to open the native files — the DXF and PDF work with any viewer and can go straight into production.
Licence
Single-user license. You may use, modify, and manufacture parts from these files for your own projects, commercial or private. You may not redistribute, resell, or share the files, in original or modified form.
Disclaimer
These files are provided as-is, without warranty of any kind. The design is intended for a vented, non-pressurized water tank. You are responsible for verifying the design for your application, for proper fabrication and welding, and for secure mounting on your vehicle.
Not sure yet?
Check out Builds & Fixes on our blog and read more about the tank!
